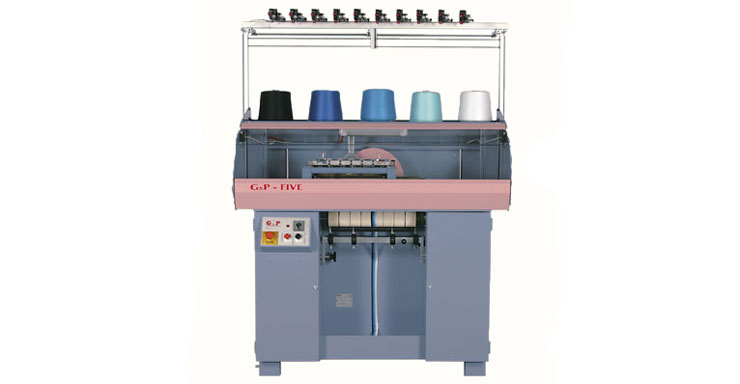

Compact in size, FOUR and FIVE are machines to create strips and scarves with vertical band knitting in intarsia.

Easy systems to select the available stitch types, they can produce different types of strips.

The machines are equipped with a yarn recovery system, knot marker, needle-savers, built-in lighting, manual changer of speed, an effective take-down system for the knitting produced and of inverter for a sweeter departure.

Each model is formed by a solid bench that with a clear control system, various safety guards and stopping system, ensuring the operator’s safety while working.

It is recommended to use yarns easy to work, very slippery and well paraffined.

G&P FOUR
  • Gauge
  • 7 - 10 - 12
  • Number carriage
  • 1 carriage with 4 system
  • Width work min. cm
  • 1
  • Width work max. cm
  • 35
  • Type of knitting
  • 4 strips simultaneously
    1 strip in 4 intarsia colors
  • Type of stitches
  • Close knit
    Flat Knit
    Tubular



  • Type of needle
  • With high heel needle
  • Type of sinkers
  • /
  • Feeding yarn
  • G&P tightener
  • Yarn carriers
  • 4
  • Maximum frequency rows/minut
  • 120
  • Speed of carriage
  • Adjustable
  • Raced of carriage
  • Adjustable
  • Compressed air
  • /
  • Power supply
  • 380V - 50Hz
  • Dimensions cm
  • 90x135x180
  • Weight Kg
  • 230
  • Optionals
  • Guidafilo wanisee
    Rolling-up dev. MINI 55
    Extractor Rubino 30
    Electronic take-down
G&P FOUR SPECIAL
  • Gauge
  • 7 - 10 - 12
  • Number carriage
  • 1 carriage with 4 system
  • Width work min. cm
  • 1
  • Width work max. cm
  • 35
  • Type of knitting
  • 4 strips simultaneously
    1 strip in 4 intarsia colors
  • Type of stitches
  • Close knit
    Flat Knit
    Tubular
    English stitch
    Corn cob stitch
  • Type of needle
  • With high heel needle
  • Type of sinkers
  • /
  • Feeding yarn
  • G&P tightener
  • Yarn carriers
  • 4
  • Maximum frequency rows/minut
  • 120
  • Speed of carriage
  • Adjustable
  • Raced of carriage
  • Adjustable
  • Compressed air
  • 4 atm
  • Power supply
  • 380V - 50Hz
  • Dimensions cm
  • 90x135x180
  • Weight Kg
  • 230
  • Optionals
  • Guidafilo wanisee
    Rolling-up dev. MINI 55
    Extractor Rubino 30
    Electronic take-down
G&P FIVE
  • Gauge
  • 10 - 12
  • Number carriage
  • 1 carriage with 5 system
  • Width work min. cm
  • 1
  • Width work max. cm
  • 35
  • Type of knitting
  • 5 strips simultaneously
    1 strip in 5 intarsia colors
  • Type of stitches
  • Close knit
    Flat Knit
    Tubular
    English stitch
    Corn cob stitch
  • Type of needle
  • With high heel needle
  • Type of sinkers
  • With 5 heel needle
  • Feeding yarn
  • G&P tightener
  • Yarn carriers
  • 5
  • Maximum frequency rows/minut
  • 120
  • Speed of carriage
  • Adjustable
  • Raced of carriage
  • Adjustable
  • Compressed air
  • /
  • Power supply
  • 380V - 50Hz
  • Dimensions cm
  • 90x135x180
  • Weight Kg
  • 230
  • Optionals
  • Guidafilo wanisee
    Rolling-up dev. MINI 55
    Extractor Rubino 30
    Electronic take-down
